1.0 INTRODUCTION

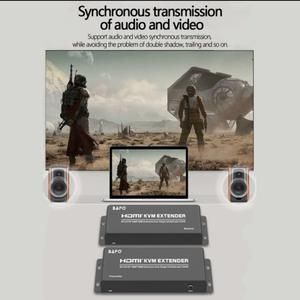

BAFO HDMI KVM Extender didasarkan pada standar TCP/IP. Ini mentransmisikan maksimal 200 meter dari sumber HDMI Anda (komputer, pemutar media, DVR, dll) ke layar HDMI dengan kabel LAN CAT6. Pada saat yang sama, Anda dapat mengontrol sumber dari jarak jauh dengan menggunakan keyboard dan mouse. Juga nyaman untuk mengirimkan sumber audio dan video HDMI dengan mode point-to-point, mode satu point-to-many dan mode koneksi kaskade.
2.0 FEATURES
1. Signal transmission: Cat6 or higher level cable up to 200M;
2. Support HDMI 1.3 and HDCP 1.2 protocol;
3. Support input/output resolutions: 60fps/1080p/720p/576p/480p;
4. Support IR remote control 20~60KHz;
5. Audio format support: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD;
6. TCP/IP protocol compliant, one transmitter and multiple receivers with a
maximum of 253 receivers;
7. Simple to install, plug and play, no drivers needed;

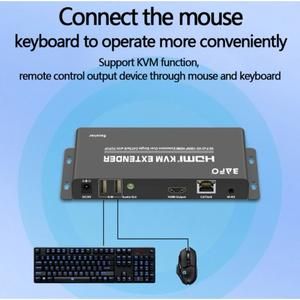

8. With KVM function (USB port), for remote control by keyboard and mouse.
3.0 PACKAGE CONTENTS
following items are included:
1x HDMI Extender Transmitter
1x HDMI Extender Receiver
1x IR Transmitter
1x IR Receiver
2x 5V DC Power Supply adapter
1x USB Data Cable
1x Operation Manual
4.0 SPECIFICATIONS
HDMI Version - HDMI V1.3
Transmitter Input Port - HDMIx1(AF),USB(BF)x1
Transmitter Output Port - HDMIx 1(AF),RJ45x1,IR TXX1
Receiver Input Port - RJ45x1,IR RXX1
Receiver Output Port - HDMIX 1(AF), USB(AF)x2
Frequency Bandwidth - 2.25Gbps (single link)
Input/Output Resolutions - 480p, 576p,720p,1080p
Audio - Sample rate:32kHz, 44.1kHz, 48kHz
IR remote control - 20~60KHZ;NEC
ESD Protection Human Body Model - ±8kV (air-gap discharge)
/ ±4kV (contact discharge
Dimension (mm) -
