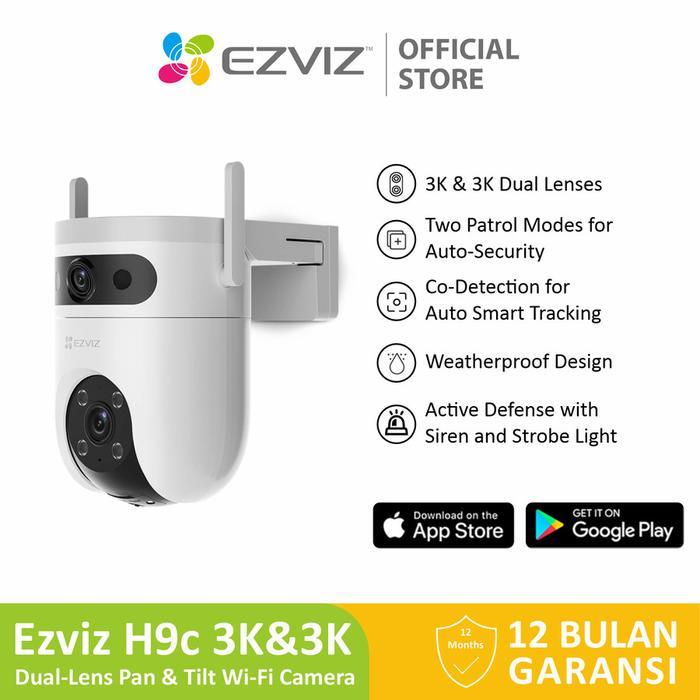

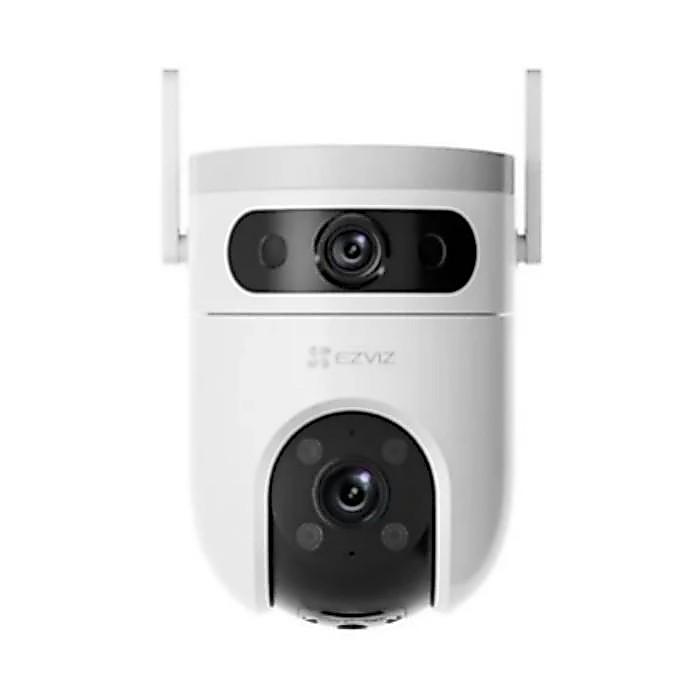

EZVIZ H9c 5MP+5MP OUTDOOR WIFI CAMERA WITH DUAL MOTORIZED PAN/TILT 360

Specifications
Model CS-H9c-R100-8G55WKFL

Note: Rekaman yang tersimpan hanya 1 lens saja (PT Lens)

Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Shutter Speed Self-adaptive shutter
Lens Fix Lens: 2.8mm@ F1.6, viewing angle: Diagonal 132°, Horizontal 110°, vertical 58° Pan&Tilt Lens: 6mm@F1.6, viewing angle: Diagonal 64°, Horizontal 56°, vertical 29°
PT Angle Pan: 350°, Tilt: 80°
Minimum Illumination 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories)
Lens Mount M12
Day & Night IR-cut filter with auto-switching
DNR 3D DNR
WDR Digital WDR
Black & White Night 30m / 98ft

Video & Audio
Max Resolution 2880 × 1620
Frame Rate Max:15fps; Self-Adaptive during network transmission
Video Compression H.265 / H.264
H.265 Type Main Profile
Video Bit Rate Ultra-HD; Hi-Def; Standard. Adaptive bit rate.
Audio Bit Rate Self-Adaptive

Network
Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth Supports 20MHz
Transmission Rate 11b 11 Mbps, 11g 54 Mbps, 11n: 150 Mbps
Wi-Fi Pairing AP paring
Protocol EZVIZ cloud proprietary protocol
Interface Protocol EZVIZ cloud proprietary protocol
Wired Network RJ45 × 1 (10M / 100M Adaptive Ethernet Port)
Security WPA-PSK/WPA2-PSK

Functions
Smart Alarm AI-Powered Human Shape Detection / AI-Powered Vehicle Shape Detection / Motion Detection
Auto Tracking Supports
Customized Alert Area Supports
Two-way Talk Supports
Preset Locations Supports
General Function Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark

Storage
Local Storage Supports microSD Card (Up to 512 GB)
Cloud Storage EZVIZ CloudPlay storage

General
Operating Conditions -30°C to 50°C ( -22 °F to 122 °F ) Humidity 95% or less (non-condensing)
IP Grade Weatherproof Design
Power Supply DC 12V/1.5A
Power Consumption MAX. 12W
Dimensions 145 × 116 × 142mm (5.71 × 4.57 × 5.59 inch)
Packaging Dimensions 150 × 150 × 194mm (5.90 × 5.90 × 7.64 inch)
Weight Net Weight: 668 g With Package: 960 g

In the box
In the box - H9c Camera (x1)
- Drill Template (x1)
- Screw Kit (x1)
- Waterproof Kit (x1)
- Power Adapter (x1)
- Regulatory Information (x2)
- Quick Start Guide (x1)

Certifications
Certifications CE / UKCA/WEEE / RoHS / REACH
