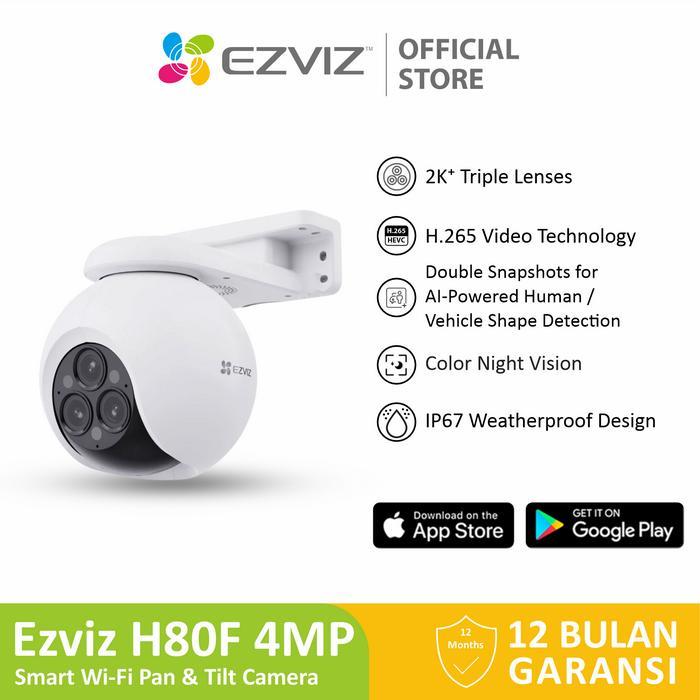

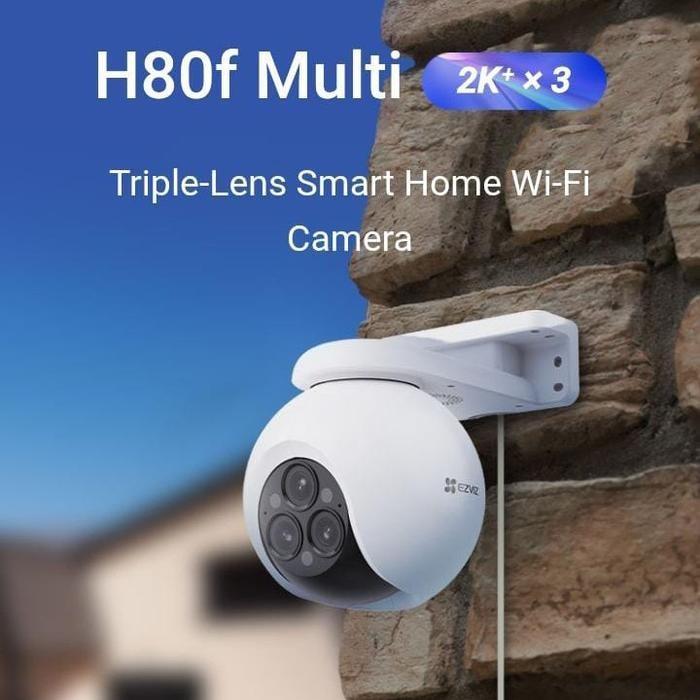

Ezviz H80F Multi 2K+ Smart Home Security Wifi Pan & Tilt IP Camera CCTV Outdoor

Specifications:

Model: CS-H80f-R100-8G444WKFL


Camera
Image Sensor: 1/3” Progressive Scan CMOS * 3
Shutter Speed: Self-adaptive shutter
Lens:
2.8mm @ F1.6, viewing angle: 54° (Vertical), 96° (Horizontal), 110° (Diagonal)
6mm @ F1.6, viewing angle: 28° (Vertical), 52° (Horizontal), 60° (Diagonal)
12mm @ F1.6, viewing angle: 14° (Vertical), 25° (Horizontal), 29° (Diagonal)

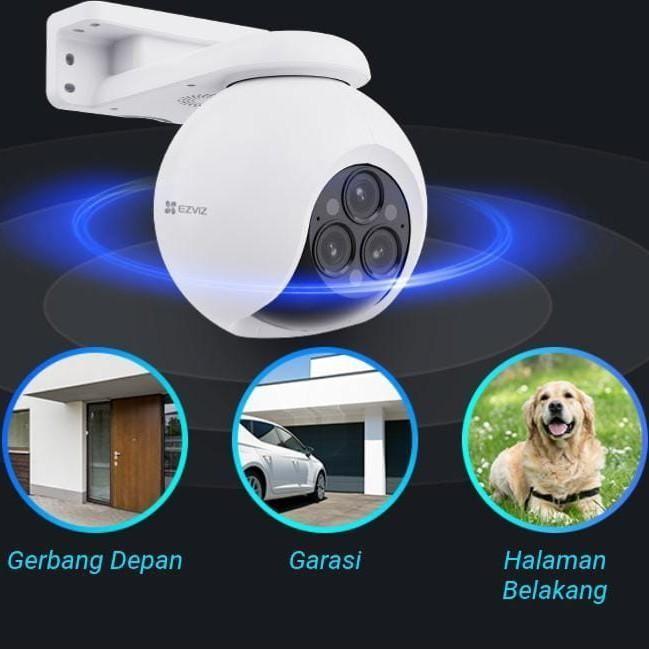

PT Angle: Pan: 340°, Tilt: 70°
Minimum Illumination: 0.05 Lux @ (F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories)
Lens Mount: M12
Day & Night: IR-cut filter with auto-switching
DNR: 3D DNR
WDR: Digital WDR
BLC: Supports
Night Vision: 30 m / 98 ft


Video & Audio
Max. Resolution: 2560 × 1440
Frame Rate: Self-adaptive during network transmission
Video Compression: H.265 / H.264
H.265 Type: Main Profile
Video Bit Rate: Quad HD; Full HD;HD adaptive bit rate
Audio Bit Rate: Self-adaptive


Network
Wi-Fi Standard: IEEE802.11b , 802.11g , 802.11n
Frequency Range: 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth: Supports 20MHz
Security: 64 / 128 - bit WEP , WPA / WPA2 , WPA-PSK / WPA2-PSK
Transmission Rate: 11b : 11Mbps , 11g : 54Mbps , 11n : 150Mbps
Wi-Fi Pairing: AP pairing
Protocol: EZVIZ cloud proprietary protocol
Interface Protocol: EZVIZ cloud proprietary protocol
Wired Network: RJ45 × 1 (10M / 100M Adaptive Ethernet Port)


Function
Smart Alarm: AI-Powered Human Shape Detection / Vehicle
Customized Alert Area: Detection
Two-Way Talk: Supports
Auto Zoom Tracking: Supports
General Function: Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark


Storage
Local Storage: Supports microSD card (Max. 512 GB)
Cloud Storage: Supports EZVIZ CloudPlay storage (subscription required)


General
Operating Conditions: -30°C to 50°C, Humidity 95% or less (non-condensing)

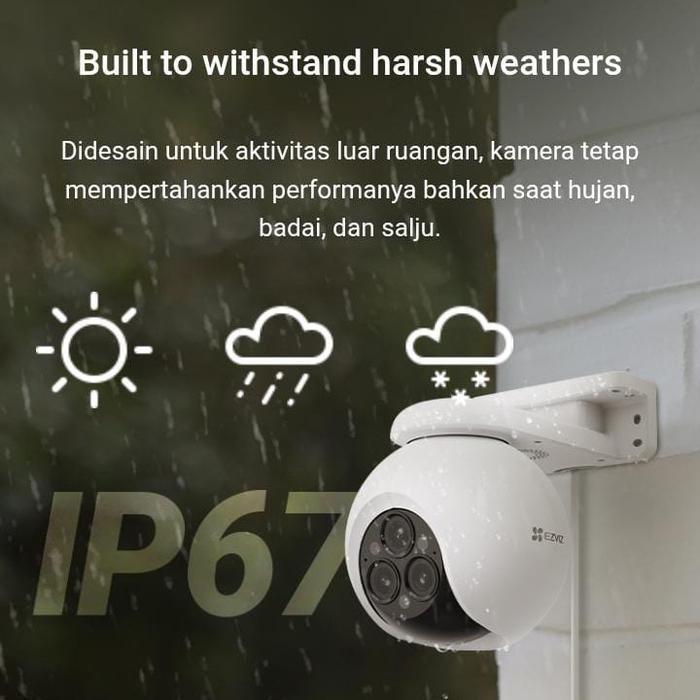

IP Grade: IP67
Power Supply: DC 12 V / 1.5 A
Power Consumption: Max. 18 W
Dimensions: 168 × 112 × 156 mm (6.61 × 4.41 × 6.14 inch)
Packaging Dimensions: 205 × 176 × 194 mm (8.07 × 6.93 × 7.64 inch)
Weight:
Product : 575.7 g (20.31oz)
With package : 979.89 g (34.56oz)


In the box
- Camera
- Drill Template
- Waterproof Kit
- Screw Kit
- Power Adapter
- Regulatory Information × 2
- Quick Start Guide
