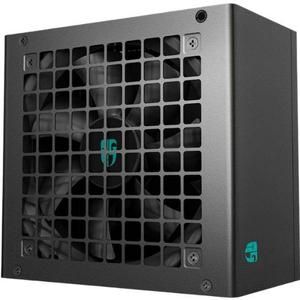

POWER SUPPLY PSU DEEPCOOL GAMERSTORM PF600X 600W 80+ BRONZE NON MODULAR

MULTIPLE BRONZE EFFICIENCY CERTIFICATIONS
The *bronze efficiency obtained from 80 PLUS, Cybenetics, and PPLP, ensuring 88% efficiency under typical loads (50%), significantly reduced energy loss and heat generation while extending the service life of the PSU.


TAIWANESE + JAPANESE PREMIUM CAPACITORS
By using the Taiwanese premium solid and electrolytic capacitors, the PF-X series can ensure a hold-up time ≥ 16ms under 75% load, which provides reliable protection for abnormal power outages.
The 5V Stand-By rail uses an electrolytic capacitor from two major Japanese brands, which have a four-fold life span compared with normal, ensuring stable standby throughout the day.


RELIABLE TOPOLOGY
To meet the Intel ATX 2.52 standard, using Active PFC + Double Forward + DC to DC, combined with a dual-stage EMI circuit. It significantly reduces ripple noise and voltage deviation, providing better electrical performance and compatibility.


WIDE VOLTAGE ADAPTATION
Supporting 180V-264V wide voltage operation and extreme full-load working conditions under room temperature at a 160V low-voltage grid were supported to avoid voltage instability shutdown.


Strict Safety Standard
Strictly following global safety standards, beyond competitors, including the 40℃ and 5000m safety levels, meets the requirements for high-temperature and high-altitude areas.


40K HRS MTBF LONG-LIFE FAN
A high-quality long-life bearing fan extends operational life by 30% compared to a normal fan and can continuously function for 7×24 hrs in a 40℃ environment. Meanwhile, the aerodynamic design based on PCB layout and flow resistance offers superior stability and quiet operation.


High-Grade Configurations
Equipped with GAMER STORM's custom-molded sleeved cables significantly enhances the installation and wiring experience.


Technical Spec
Type ATX12V V2.52
Product Dimensions 150×140×86mm (W x L x H)
Efficiency certification 80PLUS 230 EU Bronze/CYBENETICS Bronze /CYBENETICS A 230V/PPLP 230V Bronze
Fan Size 120mm
Fan Bearing Longlife HYB
Topology Active PFC+DC to DC
Capacitors Taiwanese + Japanese Electrolytic Capacitors
Power Good Signal 100-150ms
Hold Up Time ≥16ms(75% Load)
Efficiency ≥88% Under Typical Load(50% Loading)
Protection OPP/OVP/OCP/SCP/OTP/UVP/SIP/NLO
Operation Temperature 0-40°C
Regulatory CE/TUV-RH/CCC/RCM/KC
Erp Regulation ErP 2014
Environment Protection WEEE/ RoHS/Triman
MTBF 40,000 Hours
